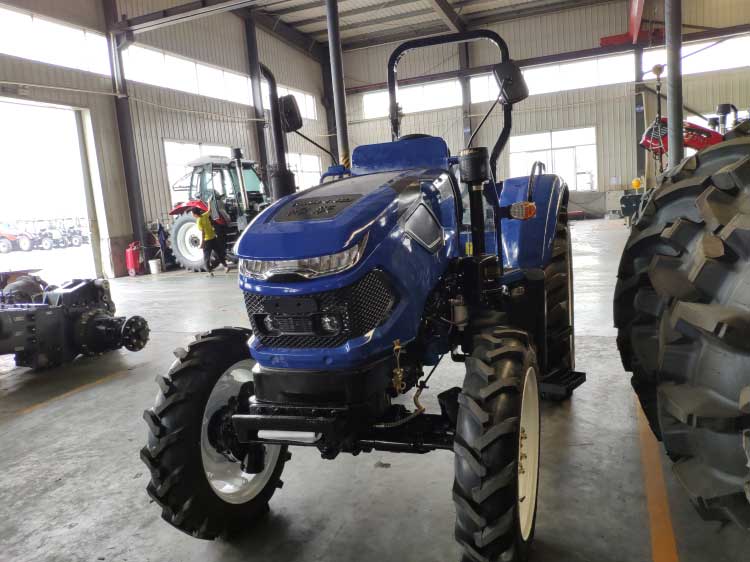

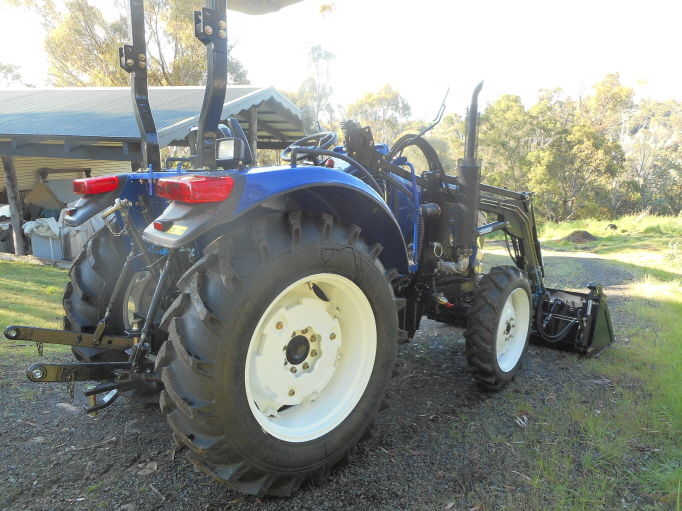

TB-554

Price : Flat floor,  4 x 4, H/D chassis 12/12 Shuttle shift
with Front end Loader, : $24,545 plus GST

Print Friendly, PDF & Email




  • Features

* 2-4 wheel drive selectable, with rear differential lock.

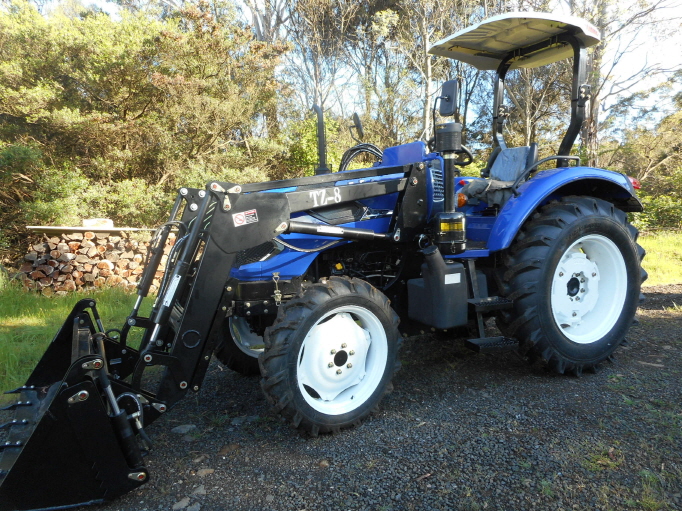

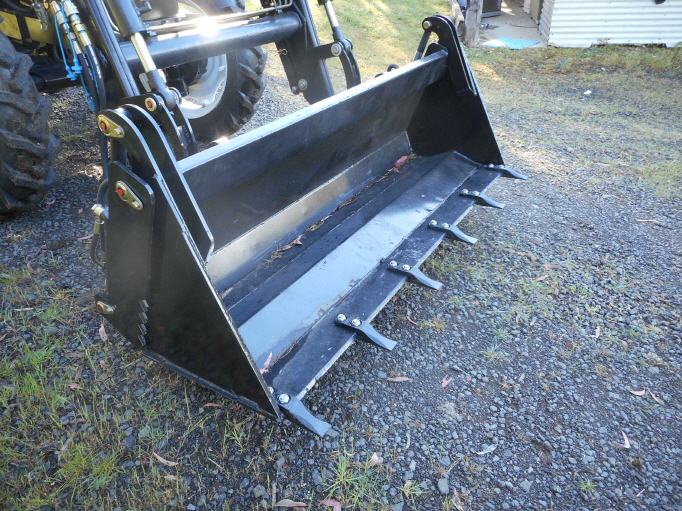

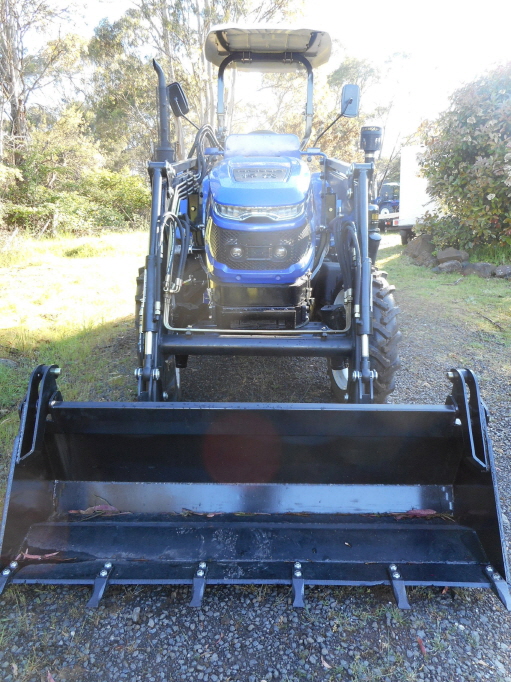

* Most are fitted with Front end loader [ FEL] and 4 in 1 bucket.

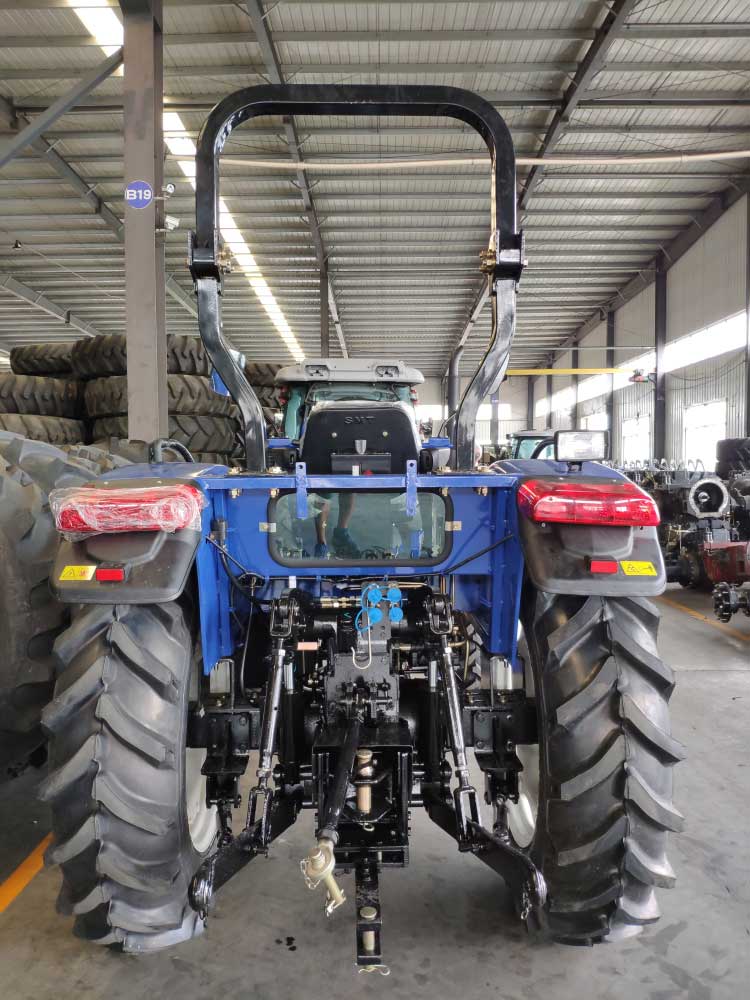

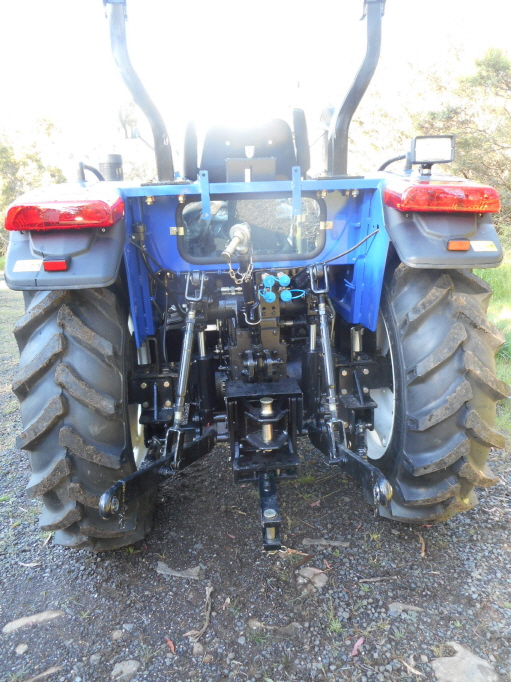

* Fitted with two sets of rear hydraulic remotes.
* Dual Clutch with two speed PTO.
*  Fitted with Shuttle shift Transmission.

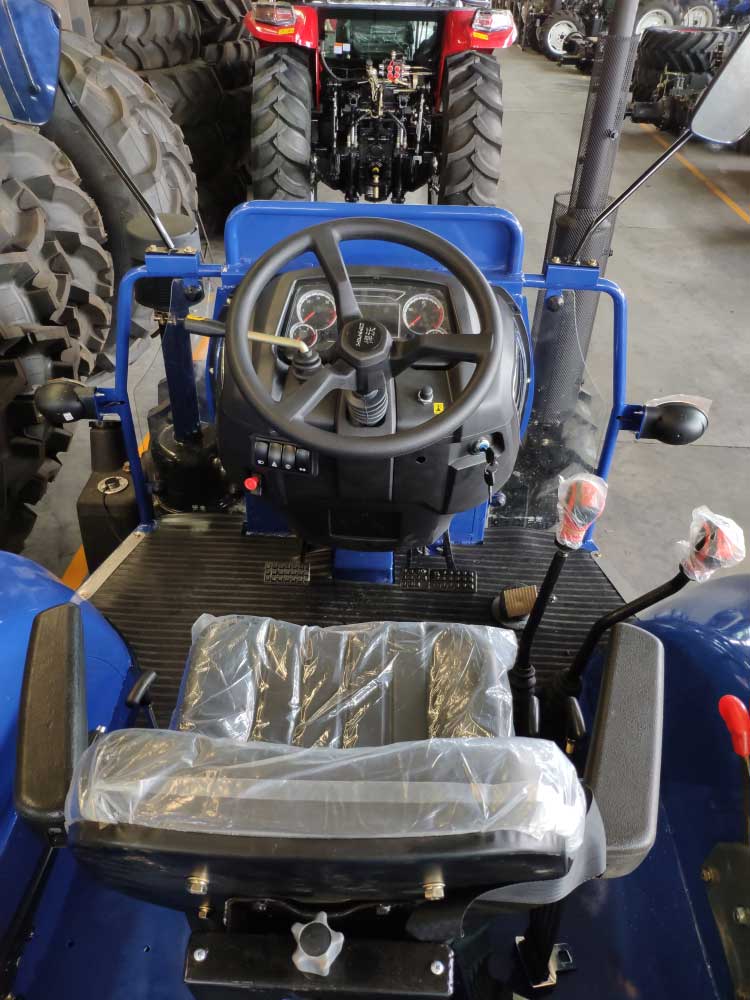

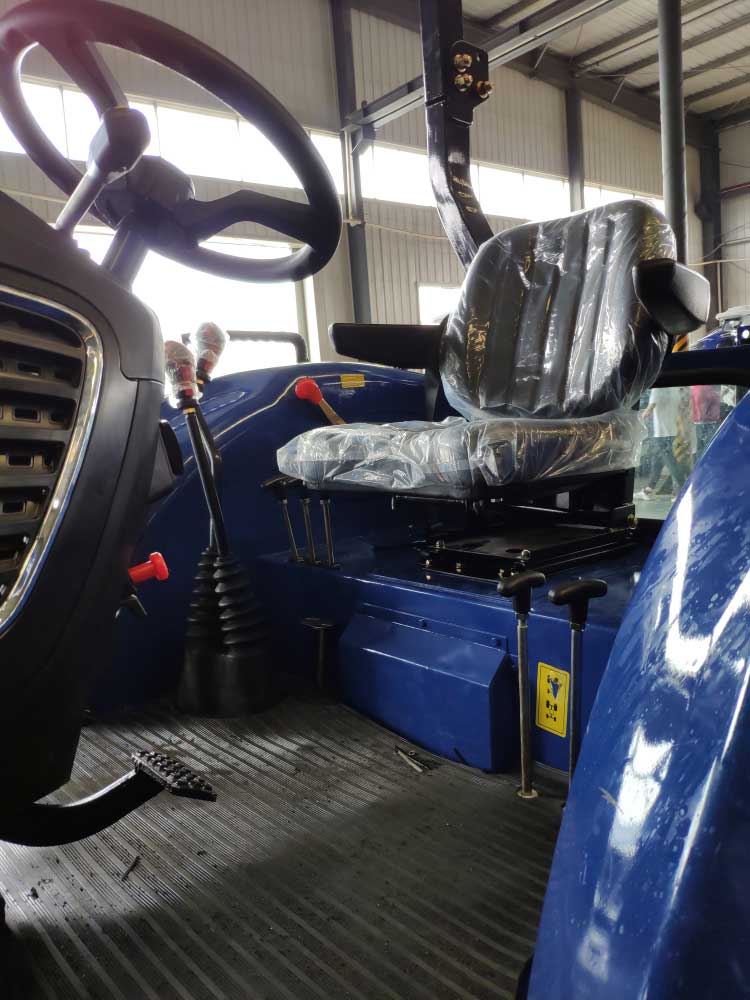

* Suspension seat.

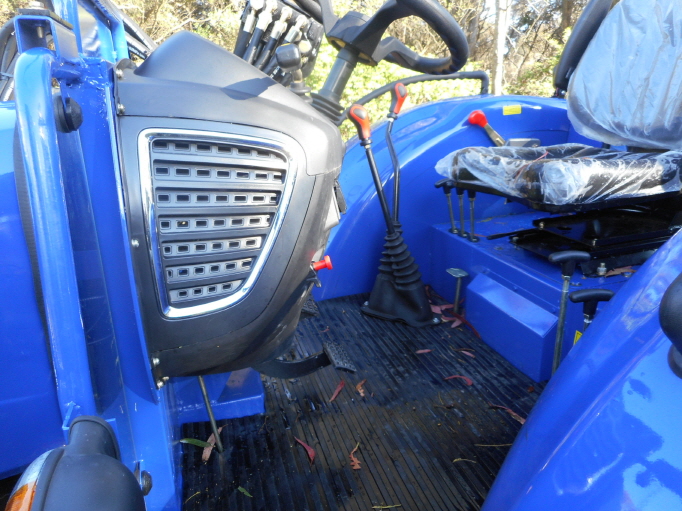

* Side mounted gear Lever.
* local comprehensive Warranty and spare parts supply, no third party.
* Proven in quality.
* The Chassis used is the larger heavy duty  TB 12F/12R Chassis, that we pay around 25% more for in China.

  Features

Drive type 4WD
Horsepower: 55hp
Overall length (front weight to link end): 4200mm
Overall width (outer wheel tread): 1910mm
Height to R.O.P.S (top): 2700mm
Height to canopy (top): 2800mm
Height to steering wheel: 2000mm
Ground clearance 410mm
Tractor weight with ballast: 2700kg
Tractor weight with loader: 3500kg
Minimum turning radius 4.3±0.2m
Speed forward: 3.06-37.5
Speed reverse: 3.61-37.2
Suspension Seat: YES
Hydraulic Remotes: YES
Step Through Deck: YES
Bonnet Engine Access: YES
PTO Clutch: YES
Air Conditioning: NO

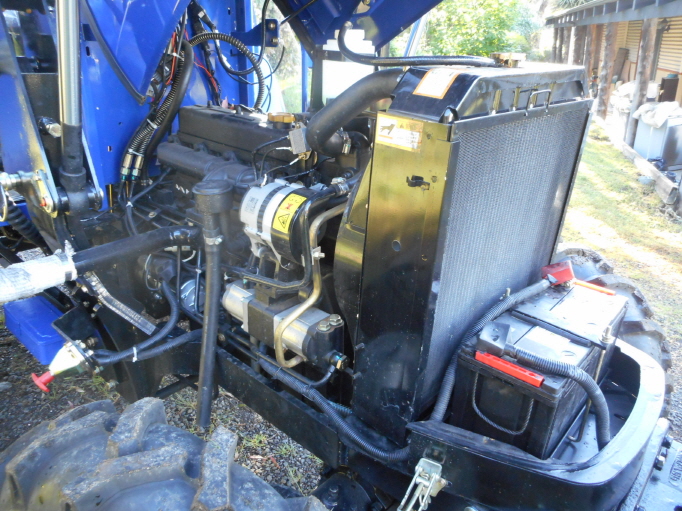

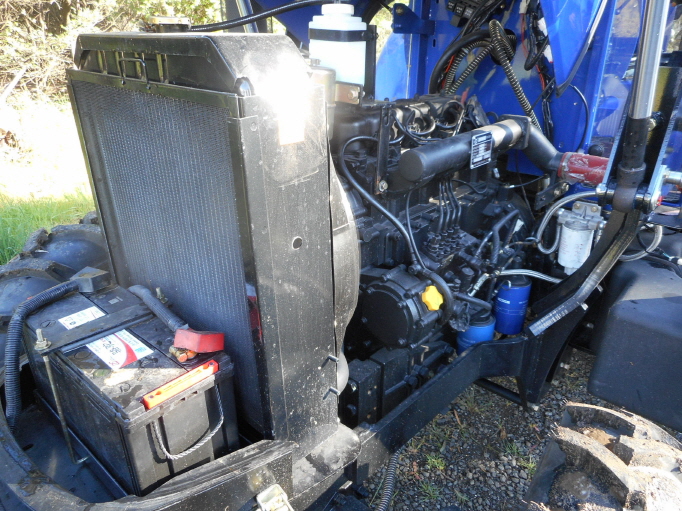

  Engine Details

Engine manufacturer: Jiang Huai Dong Li Engine[JD Engine]
Which other main china brands use this engine : Foton Lovol, Dongfeng, SH
Model: JD4102
Type: Water cooled, vertical
Gross power(12hr rated power kW/hp): 40.45 KW/55hp
Cylinders: 4
Bore and stroke: 4*85mm*102mm
Displacement: 3.43L
Speed rated at:  2300/2400r

  Transmission / differential details

Transmission brand:  Baili TB Chassis
Transmission type: Central Gear Transmission
Which other tractor brands use this type of Transmission:  Foton
Transmission Type: Central Gear Transmission
Gearbox: 12 / 12 (include shuttle shift)
Gears: Spiral Bevel Gear
Brake type: Effective Drum type.
Clutch type:  Dry friction, constant conjunction, double clutch
Rear differential lock: yes
PTO type: Double Speed
PTO rotating speed:  540/1000rpm
PTO kW/HP: 85 – 90% of engine HP

  Tyres

Front tyre size - Agricultural: 8.30-24
Rear tyre size - Agricultural: 14.9-28
Front tyre size - Turf: NO
Rear tyre size - Turf: NO
Front tyre size - Industrial: N/A
Rear tyre size - Industrial: N/A

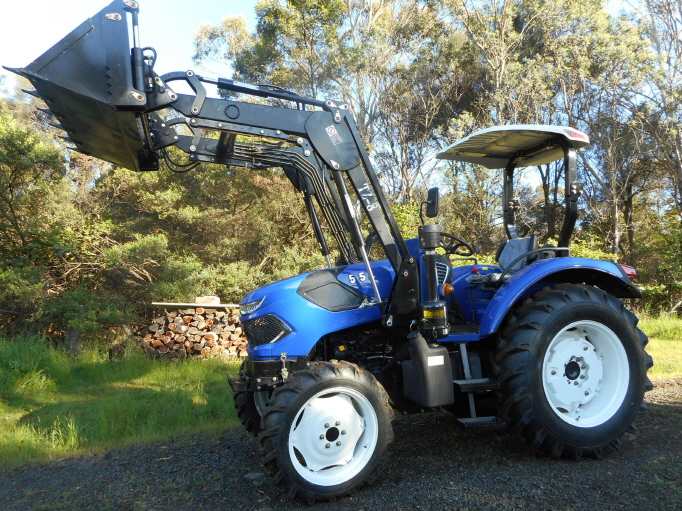

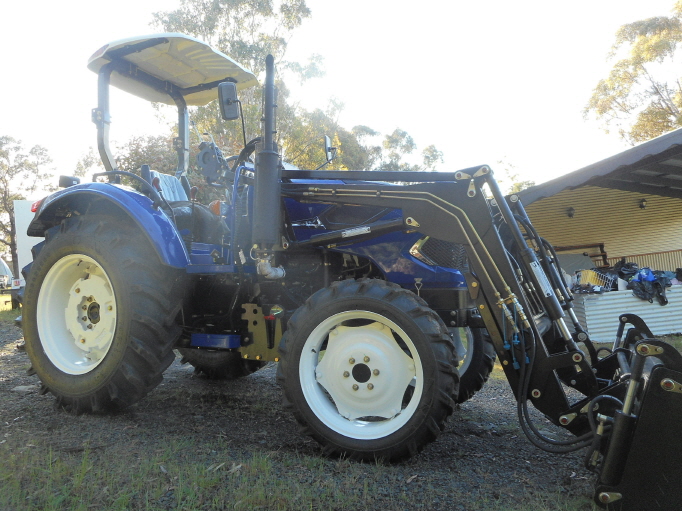

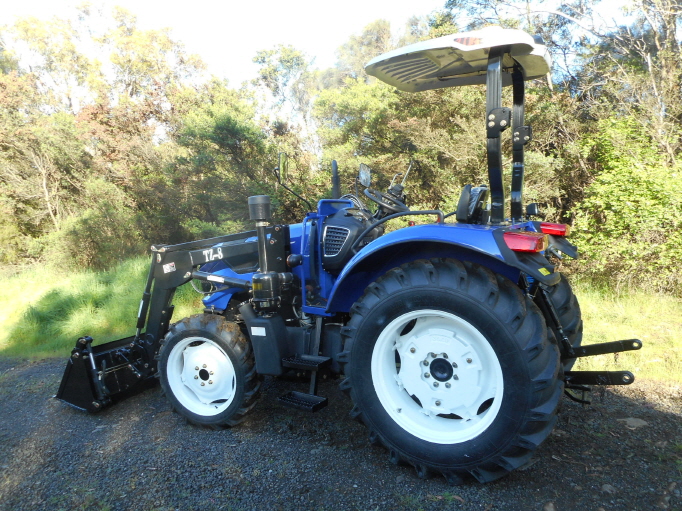

Front end loader

Hydraulic pumps Brand: Foton or Similar
Pump model: CBT-F-312FHL-FT
Model No: TZ-7
Supply: Factory in China
Loader Control: Hydraulic system
Bucket width:  1739mm
Quick Release from Tractor: YES
Quick Release Bucket: YES
(A) Lift height at Pivot Point: 2400mm
(B) Dump clearance: 1000mm
(D) Crowd angle:  42°
(E) Dump angle:  46°
Lifting capacity: 700kg

* Specifications can change at any time, without notice, so please check with our staff to be sure
